Apollo PP2526 Discovery Brandknapp, inomhusbruk, EN 54-11-certifierad, röd
Leveranstid 2-4 dagar
Apollo PP2526 Discovery Brandknapp, inomhusbruk, EN 54-11-certifierad, röd
Artikelnummer: SA5900-908APO
Protocol Compatibility
The Intelligent Manual Call Point will operate with compatible Apollo control equipment using the digital XP95, Discovery and CoreProtocols.
Electrical Consideration
The Intelligent Manual Call Point is loop powered and operates at 17-35V DC for all variants.
Operating Principles
The address of each call point is set at the commissioning stage by means of a DIL switch.
A solid red alarm LED is provided on the manual call point.
This LED is controlled independently of the call point, by the control panel. The LED will flash yellow if there is a fault and flash green when the device is polled. Discovery and
CoreProtocol configurable.
Once activated, the Intelligent Manual Call Point can be reset by inserting the reset key into the front facing LED, turning clockwise until a positive click and reset occurs.
The Intelligent Manual Call Point incorporates a short circuit isolator which will ensure its operation in the event of a short circuit fault on the loop. Isolator operation is indicated by a solid yellow LED. For further details of the isolator refer to data sheet PP2090, available on request.
This manual call point helps reduce installation time as all the initial installation cabling is wired to a removable terminal block which fits neatly in the back of the manual call point.
Relaterade produkter
-
-
Öppna & Brandknappar

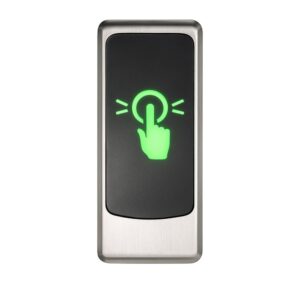

Öppnaknapp Easy 12-24 V Beröringsfri (Std) K4
